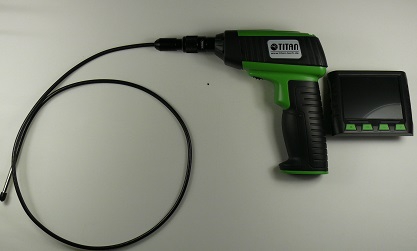

Wireless inspection camera, 5.5 mm endoscope
Product number:
2203201
Wireless inspection camera, 5.5 mm endoscope
A special highlight of this detachable wireless 3.5 "color display, is that it can be used up to approximately 6 meters, connected as well as detached.This feature is particularly important when you want to present your discovery to a curious customer or an collegue and save it as a video orimage on the included 2 GB micro SD card.
- TFT monitor (3.5“) screen size - 89mm
- Display resolution 320 x 240 pixels
- Frame rate 30 fps (frames/sec)
- Power input 450mA
- Diameter of camera head 5.5 mm
- image sensor (1/12" CMOS)
- Pixel of lens 720 x 625 pixels (450.000 pixels)
- Transmission frequency 2468MHz
- Field of view, Lens coverage 60 °
- Focus 2 ~ 7 cm
- Video output NTSC & PAL
- Camera illumination 4 LEDs, white
- USB port USB 2.0
- Power Supply 3.3VDC and over 150mA to camera tube part
- Ambient/ operating temperature -10° to +60°C
- Total length of device 115 cm
- Metal tube length 100 cm
- Protection Class gooseneck IP65 (waterproof)
- Weight without accessories approx. 550g: camera tube+handle approx. 160g: monitor only
- Photo capture 640x480
- MJPG format AVI Playback
- SD slot Support Micro SD up to 32GB
- 2GB Micro SD card incl
- Zoom Maximum 4 times
- Battery Life time 12 hours for Handle with AA batteries 2.5-3 hours for
- Monitor with full charged
- Languages EN, DE, FR, ES

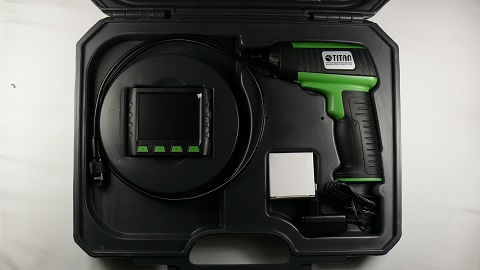

Delivery of content:
- Borescope
- PE carry case
- TV cable
- USB cable
- power cable
- cross tip screwdriver
- 60° screw-on angled mirror
- manual
