Test and inspection equipment

3.5" Video endoscope TTS-S06, with flexible 5.8 mm ∅ camera probe

This video endoscope with 3.5"-monitor screen, ∅ 5.5 mm camera head and 5.8 mm probe diameter allows inspection of hard to reach areas. The handy device is perfect for inspection of engine components and vehicle body cavities for damage and corrosion without dismantling.The camera head is able to articulate by 270°. In addition, probe base is rotatable by 360°.∅ 5.8 mm moveable probe3.5” wide TFT screen, scratch resistant270° articulation, 360° probe rotationRecords videos or takes photographs, storage on SD card up to max. 32 GB (4 GB included)Data can be easily transferred to a PC using a USB cable to PC or the SD card providedDigital zoom enlargement (2 times)Focus 2–5 cmMenu in English and German languageControllable luminosity4 bright LEDs, whiteProbe length: 1 m Resolution: 720 × 576 pixels PALPhoto format 1600 × 1200 JPEGVideo output NTSC and PALRechargeable Lithium Battery, 3.7 V / 2350 mAhWater and dust proof up to IP66Included:Endoscope Ø 5.8 mm probe with 2 way articulationCaseVideo cable adapter, USB cable, 230V power adapter4 GB SD card Rechargeable 3000mAh Lithium Battery60° mirrorCleaning set Operating manualThis device enables you to move the end of the probe. The wheel on the control unit can be used to turn the probe tip in different directions so that you can easily reach areas that can otherwise not be inspected without dismantling.

€990.00*

3.5” Monitor endoscope, ∅ 4.9 mm, 2-camera technology

Versatile, premium-quality endoscope. Semi-rigid metal probe with 4.9 mm diameter Probe is oil and scratch resistantWith 2-camera technology – no mirror requiredSwitch with LED indicator for changing the view angleClear, high-resolution imagesRecords videos or takes photosStorage on an SD card for up to 25.000 photos or the corresponding number of videos1.5 × zoom enlargementThe data can be easily transferred to a PC using a USB cable 3.5” wide TFT screen, 640 × 480 pixelsIncluded: 2 m AV cable, USB cable, charging cable, 8 GB SD card, cleaning kit for the camera lens, plastic case

€621.00*

3.5” Monitor endoscope, ∅ 5.5 mm

Versatile, premium-quality endoscope.3.5” wide TFT screen made from glass, impact resistant Image size 640 × 480 pixels (jpeg) Records videos or takes photographs, storage on SD card with space for up to 25.000 photos or the corresponding number of videosClear, high-resolution imagesData can be easily transferred to a PC using a USB cable or the SD card providedDigital zoom enlargement (3 and 5 times)With mirror and rotation functionControllable luminositySemi-rigid metal probe with a 5.5 mm diameterProbe length 1.000 mmViewing angle of 110° with screw-on mirrorPowered by AA batteriesIncluded:Endoscope with 5.5 mm probeCaseMirror with 110° viewing angle8 GB SD card AV cable4 × AA batteries

€449.00*

4.3" Video endoscope TTS-S08, with flexible 2,8 mm ∅ camera probe and articulating probe tip

4.3" video endoscope for inspection of hard to reach areas, such as pipes, lines, air ducts, engine components or vehicle body cavities for damage or corrosion. ∅ 2.8 mm moveable probe4.3” wide TFT screen, scratch resistant360° articulationRecords videos or takes photographs, storage on SD card up to max 32 GB (8 GB included)Data can be easily transferred to a PC using a USB cable to PC or the SD card providedDigital zoom enlargement (2, 4 and 8 times) Focus 0.5 to 3 cmMenu in English and German languageControllable luminosity4 high performance LEDs, white Probe length: 1.5 m Resolution: 400 × 400 (160.000 pixels)Photo format 1600 × 1200 jpegVideo output NTSC and PALRechargeable Lithium Battery, 4200 mAhWater and dust proof up to IP58moveable portion of probe made of plaited wolfram for highest durability Included:Endoscope Ø 2.8 mm probe with 2 way articulationCaseVideo cable adapter, USB cable, 230V power adapter8 GB SD cardRechargeable 3000mAh Lithium BatteryCleaning setOperating manualThis device enables you to move the end of the probe. The wheel on the control unit can be used to turn the probe in different directions so that you can easily reach areas that can otherwise not be inspected without dismantling.

€5,504.00*

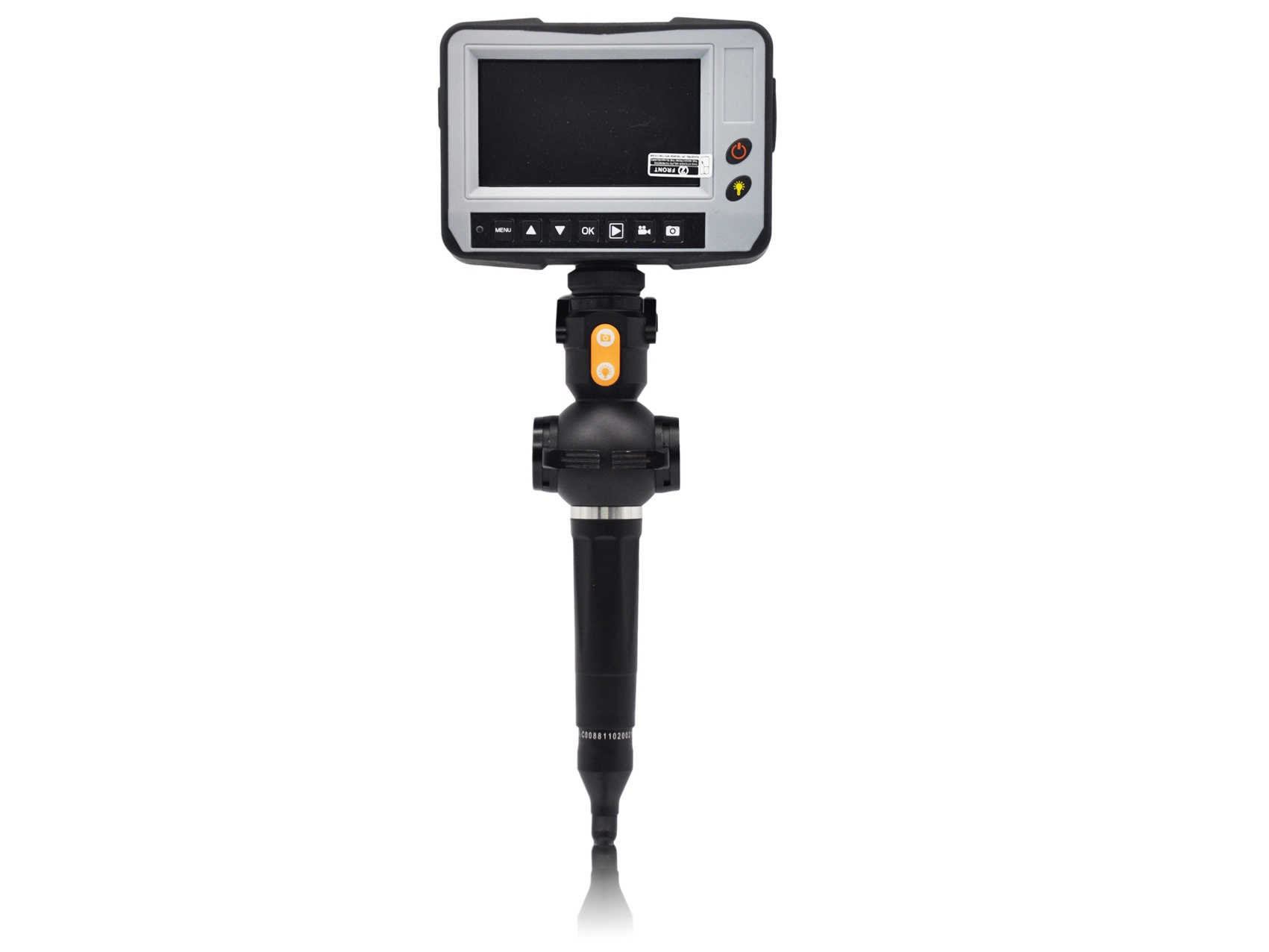

4.3" Video endoscope, with flexible 4.0 mm ∅ camera probe and 360° articulating probe tip

4.3" video endoscope with only 4 mm camera diameter for inspection of hard to reach areas, such as pipes, lines, air ducts, engine components or vehicle body cavities for damage or corrosion.∅ 4.0 mm moveable probe4.3” wide TFT screen, scratch resistant360° articulationRecords videos or takes photographs, storage on SD card up to max 32 GB (8 GB included)Data can be easily transferred to a PC using a USB cable to PC or the SD card providedDigital zoom enlargement (2, 4 and 8 times) Focus 1–20 cmMenu in English and German languageControllable luminosity6 LEDs, whiteProbe length: 1.5 mResolution: 750 × 640 pixels PALPhoto format 1600 × 1200 jpegVideo output NTSC and PALRechargeable Lithium Battery, 4200 mAhWater and dust proof up to IP67Included:Endoscope Ø 4.0 mm probe with 4 way articulationCaseVideo cable adapter, USB cable, 230V power adapter8 GB SD cardRechargeable 4200mAh Lithium BatteryCleaning setOperating manualThis device enables you to move the end of the probe. The wheel on the control unit can be used to turn the probe in 4 different directions so that you can easily reach areas that can otherwise not be inspected without dismantling.

€3,390.00*

Antifreeze tester "gefo glycomat"

For testing ethylene glycol antifreeze solutions with glycerine, which have been mandatory for Volkswagen passenger car models since 2011. Here, 20 % of the monoethylene glycol has been replaced by glycerine. For antifreeze determination, this requires the use of the new "gefo glycomat" antifreeze tester. The device has an automatic temperature compensation. The cap with rotary valve allows working without dripping or air being drawn in.Material: robust plastic housingMeasuring range -10 to -40 °CSuction volume: 52 ml Suction hose length: 200 mmDimensions (W × H × D): 120 × 155 × 40 mmWeight: 93 g (without packaging)

€14.10*

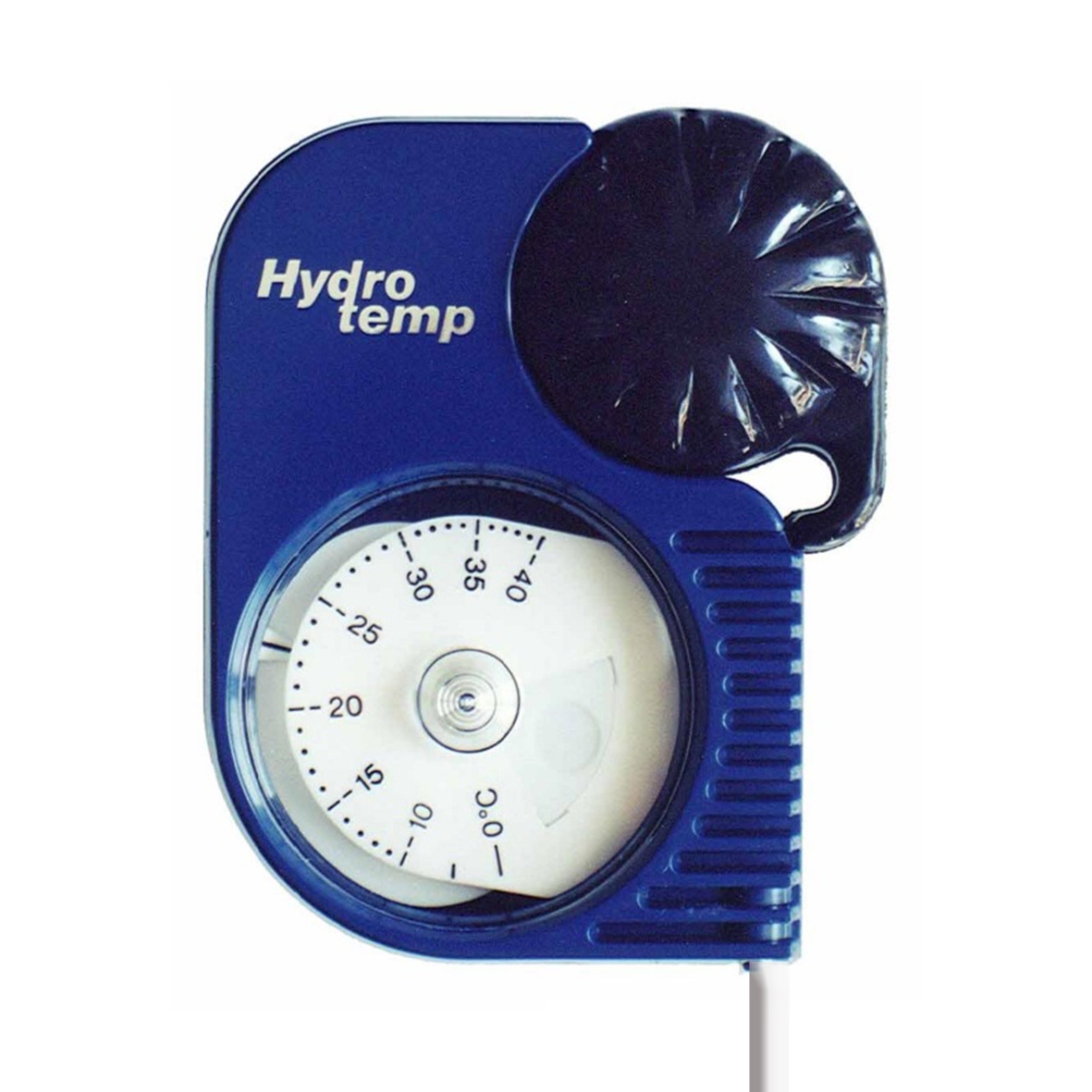

Antifreeze tester "Hydrotemp"

For checking the anti-freeze content of the ethylene glycol concentration in the cooling water, with a display accuracy of 0.5° C. The hydrostatic fluid-lock prevents the unintended outflow and the trailing of air. The elastomer suction ball remains elastic at all temperatures and allows fast and accurate testing at all temperatures.Material: break-proof plasticMeasuring range -1 to -40 °CTemperature compensated twin-rotor measuring unitDimensions (W × H × D): 100 × 125 × 40 mmWeight: 114 g (without packaging)

€14.50*

Bag for Nestle measuring wheels

Bag for Nestle measuring wheels.

€16.80*

Brake fluid tester

Rapid and precise testing of the water content in brake fluid using LED technology, a pivotable test arm and a setting screw. Four LEDs indicate the water content as a %. Temperature indication in °C/°F. Rapid and precise testing of the water content in brake fluid using LED technology. Easy operation with pivotable test arm. After dipping the probe into the brake fluid, results are immediately displayed on LCD. (% of water content). Useable for DOT3, DOT4 and DOT 5 brake fluids.

€65.10*

Brass tyre tread depth gauge with base

Brass tyre tread depth gauge with a polished, paint-protected surface. The wide base makes it easier to position the tyre tread depth gauge even in the case of rough treads.

€5.85*

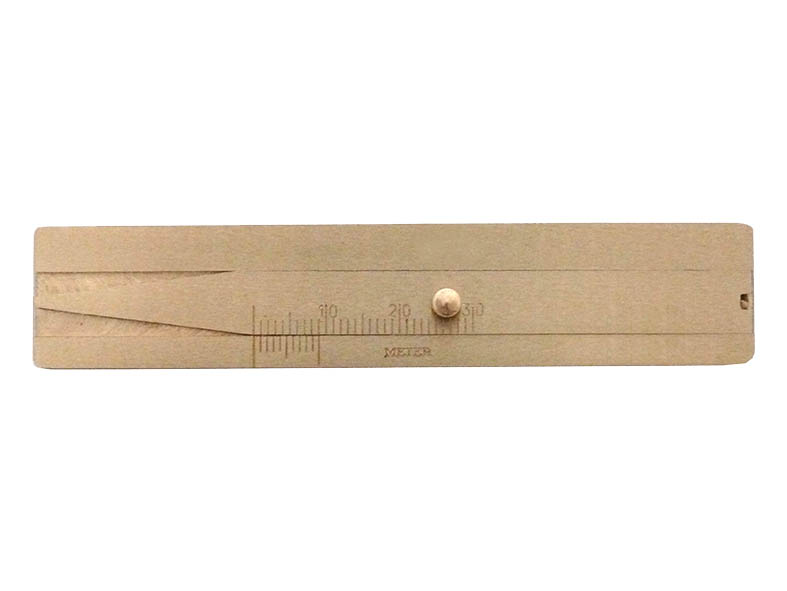

Brass tyre tread depth gauge with slide plate

Brass tyre tread depth gauge with a polished, paint-protected surface.

€3.50*

Calibration set

Calibration Set for all coating thickness gauges. Included: 1 × FE-substrate 1 × NFE-substrate 5 × certified calibration sheets (area of 50 μm, 100 μm, 250 μm, 500 μm, 1000 μm)Applicable for all coating thickness gauges with calibration function or to confirm accuracy of auto-calibrating coating thickness gauges.

€12.90*

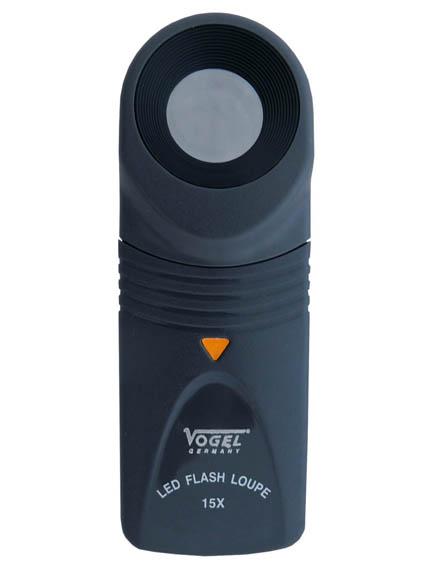

Contact magnifier with LED light

Small, handy contact magnifier with an LED light, premium-quality glass lens and 15x magnification. Particularly ideal for observing flat surfaces. Length: 10.5 cmLens ∅: 21 mm. Belt case and three 1.5 V Micro AA batteries included.

€28.10*

Depth gauge brake pen, 2-in-1

Depth gauge with practical 2-in-1 function for measuring tyre tread depth and brake pad thickness, especially on commercial vehicles. Practical size, incl. pen clip Material: metal + rubber Measuring range: 0 - 20 mm Size: approx. 18 × 1.5 cm

€8.90*

Digital AC rod thermometer

Rod thermometer for determining the temperature of an air flow or liquids. Particularly suited to determining and documenting the functional operation of the air conditioning system, this thermometer can be used to measure the outlet temperature at the air nozzles.

€16.90*

Digital LED magnifier

Digital LED magnifier, 20x to 500x with 5 MP camera. The images can be stored on a mini SD card (not included) and transferred to a PC via a USB cable.This makes it possible to transfer the findings to the report. Powered by a re-chargeable Li-Ion battery. Mini USB cable included.

€165.00*

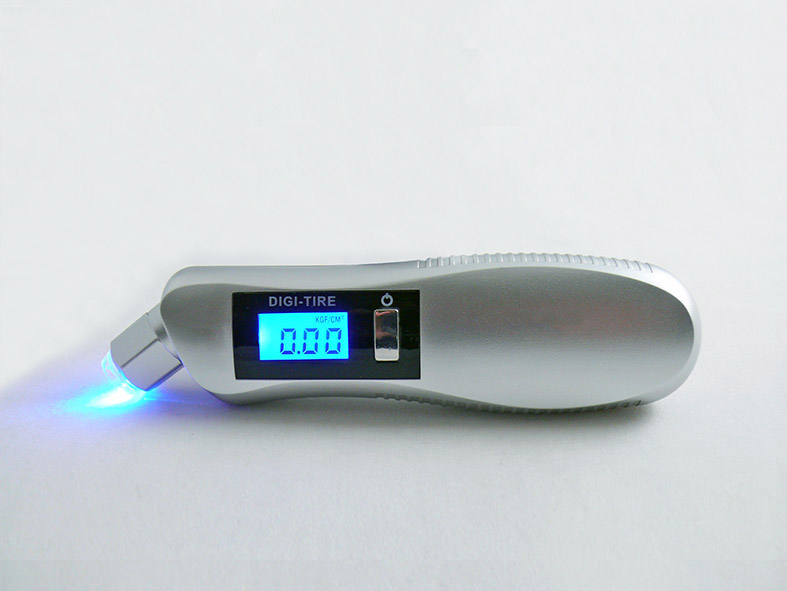

Digital tyre pressure gauge

Digital tyre pressure gauge, measuring range up to 7 bar, testing tip and display are illuminated.

€14.50*

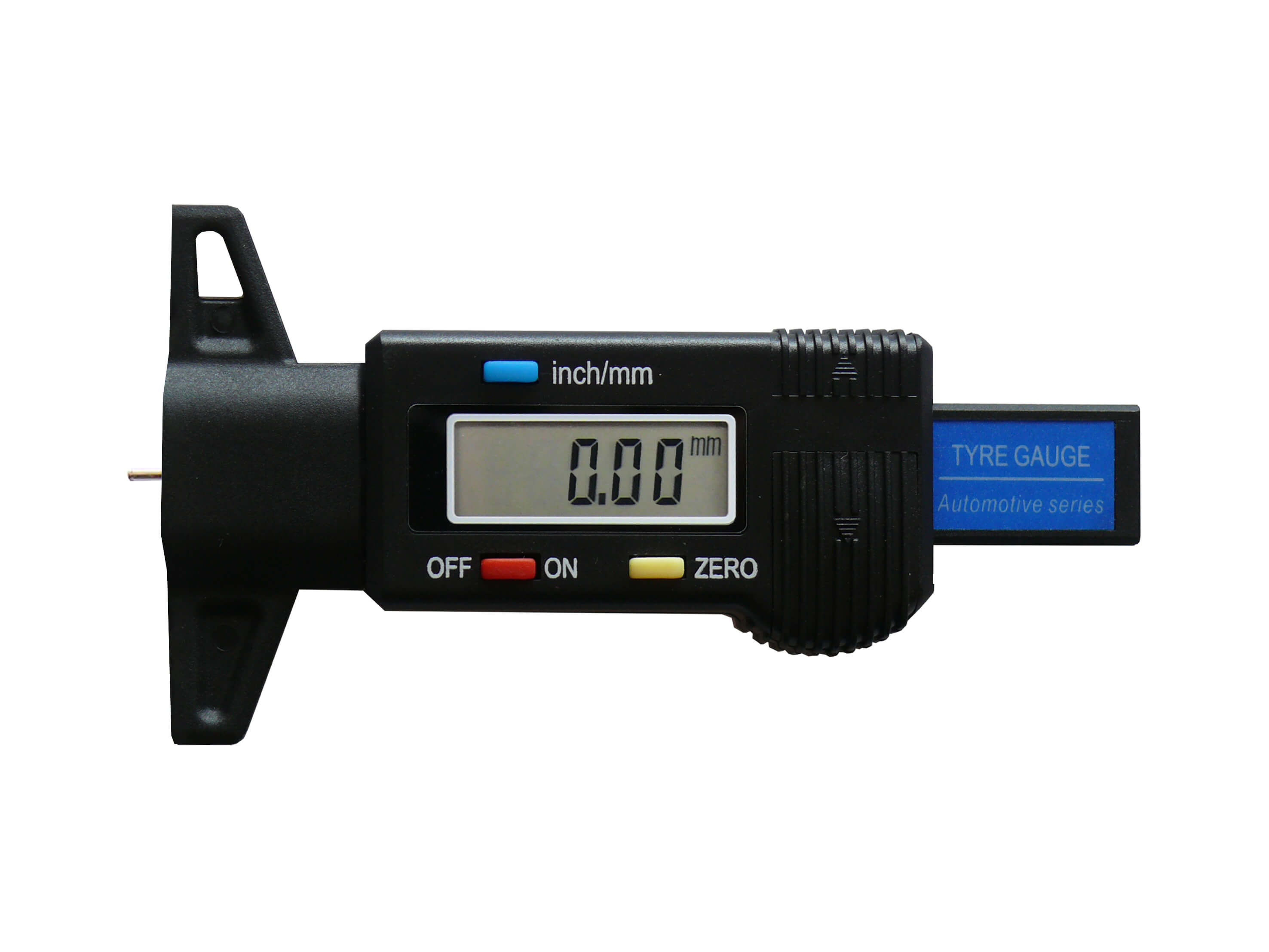

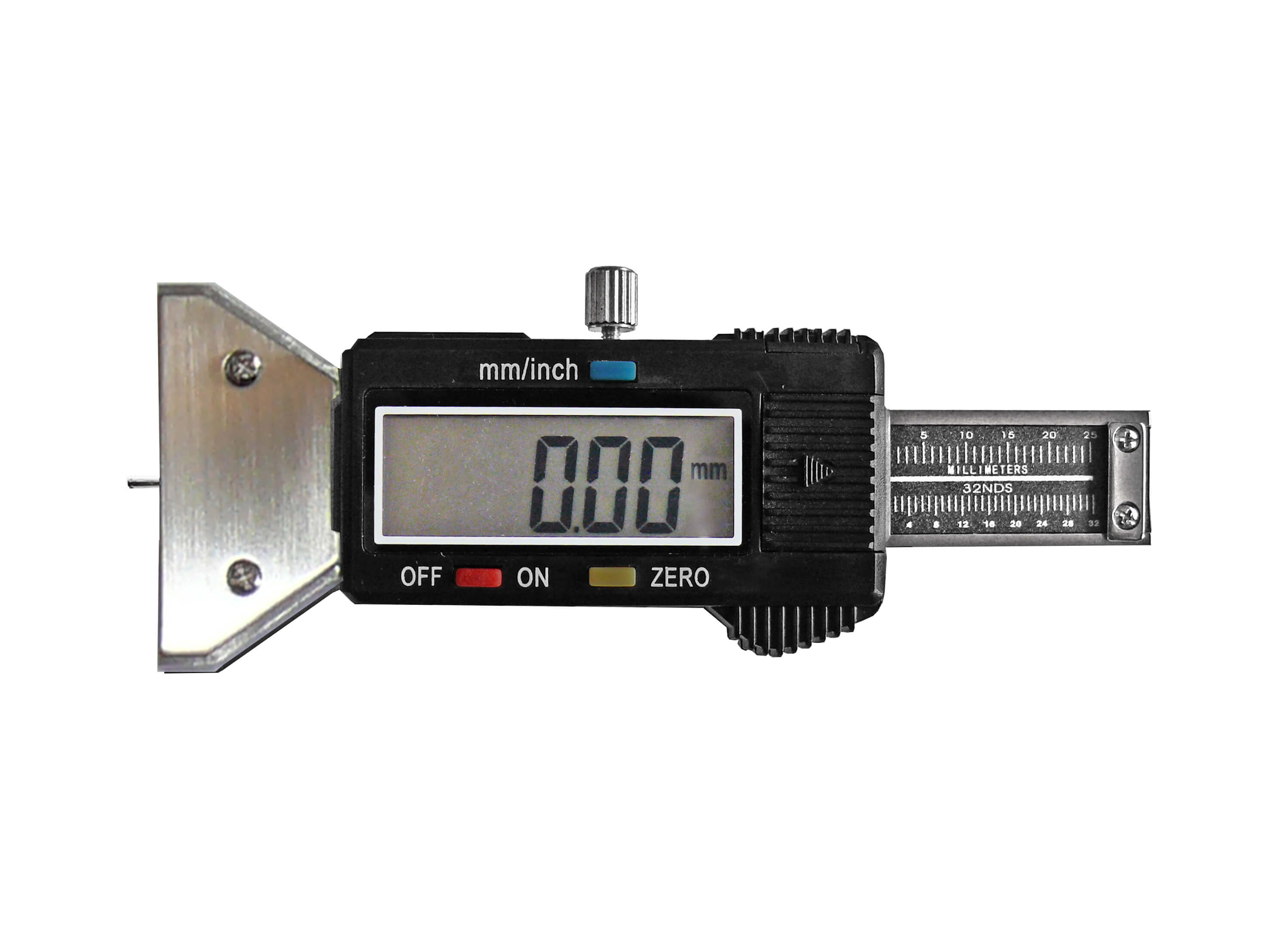

Digital tyre tread gauge

Tyre tread gauge with digital display. Measuring range: 0 – 26 mm. Measuring unit: mm or inches (selectable). Display can be zeroed at any position, robust ABS housing, battery included (LR 44, 1.5 V).

€10.60*

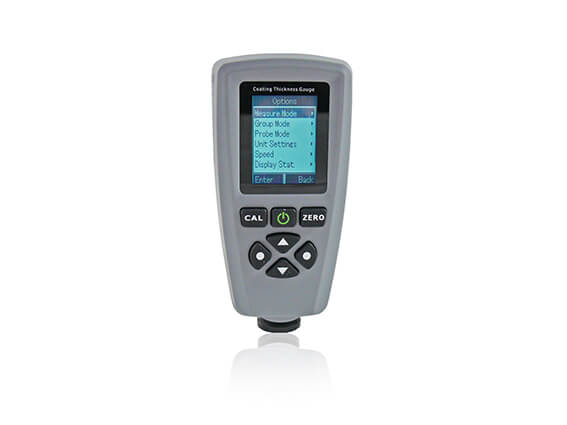

DT-168 – Coating thickness gauge

Dual gauge with automatic substrate identification. For measurements on FE and NFE metals (e. g. aluminium) Measuring depth of up to 1.300 µm Automatic metal identificationSingle-handed use Robust housing with integrated measuring probe Automatic switch-off function Measurement accuracy ± 3 % Batteries and calibration sheets included Comes in a robust plastic case PC software for data readout and process (Windows) For 2 × micro/AAA/LR03 batteries(not included, please order separately)

€185.00*

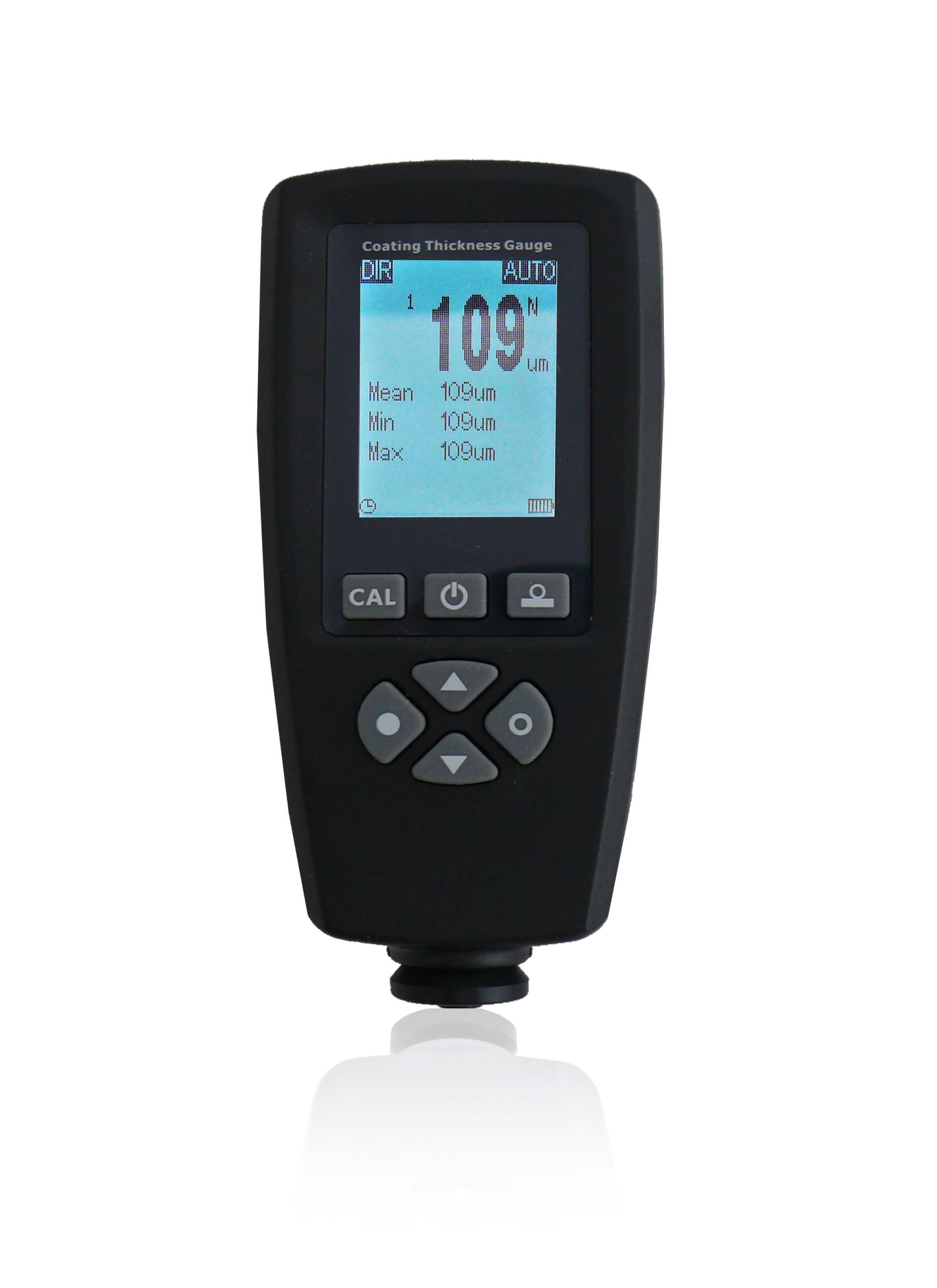

DT-530 – Coating thickness gauge

Dual gauge with automatic substrate identification. For measurements on FE and NFE metals (e.g. aluminium)Measuring depth 5000 µm (FE), resp. 3000 µm (nFE) Automatic substrate identification Single-handed use Robust housing with integrated measuring probe Automatic switch-off function Measurement accuracy ± 2% Batteries and calibration sheets included Comes in a robust plastic case PC software for data readout and process (Windows) For 2 × micro/AAA/LR03 batteries(not included, please order separately)

€289.00*

DVR Full HD Inspection Camera, 5m

DVR Inspectioncamera for remote views, 7" Full HD Monitor with 5m telescopic rod.At the end of the 5m telescopic rod is a 18 mm camera head which is moveable in all directions. The 7" monitor is fixed to the telecopic rod and allows viewing and recording of the inspection results. This camera system is ideal for the inspection of cabin and body roofs during lease return inspection of truck in case no inspection bridge is available. Also car underbodies can be inspected without lifting the vehicle.7" Full HD DisplayDisplay resolution 1920 × 1080IP 68 6 bright LEDsRechargeable 5000 mAh Lithium battery5 m rod lengthup to 64 GB SD cards possibleup to 8 hrs recording timeLanguages: English, GermanIncluded: 7" Monitor5 m telescopic rodCase rechargeable 5000 mAh Lithium battery4 GB SD cardAV-, USB-, HDMI cableSun shadeOperating manualWith this camera, damages on vehicle underbodies and on truck roofs and bodies can be detected and documented.

€899.00*

Feeler gauge (0.05 – 2 mm)

Plastic feeler Gauge from 0.05 mm to 2 mm in the following 19 sizes:0.05, 0.075, 0.10, 0.125, 0.20, 0.30, 0.40, 0.50, 0.60, 0.70, 0.80, 0.90, 1.00, 1.10, 1.20, 1.30, 1.40, 1.50 and 2.00 mm. For determining gap sizes without damaging surfaces. Particularly ideal for quality assurance activities.

€22.50*

Feeler gauge (0.5 - 4 mm)

Plastic feeler gauges from 0.5 mm to 4 mm in 0.5 mm intervals. For determining gap sizes without damaging surfaces.Particularly ideal for quality assurance activities in vehicle interiors.

€29.00*

Feeler gauge (2 – 6 mm)

Plastic feeler gauges from 2 mm to 6 mm in 0.5 mm intervals. For determining gap sizes on vehicle bodywork without damaging the paint.This original tool is used by many vehicle manufacturers for static quality control purposes in the factory.

€36.50*
